Homemade Evo Anti-roll Bar Endlinks

(c) Donour Sizemore 2008
The general outline for this project came from the BMW 3 series endlink guide by UUC Motorwerks. The parts are slightly different, but the idea is the same. Most of the parts were ordered from Mcmaster-Carr, but a few are from Pegasus Racing.

Caveat: All the parts were chosen in SAE sizing, but almost all the parts on the Evo are metric. In particular, 3/8" bolts were used where the stock endlinks use 10mm. Detail freaks may wish to substitute metric parts.

Mcmaster-Carr Parts:

Part No. Part Spec Qty Unit Cost Cost
2458K141 CARBON-FIBER RACE BALL JOINT ROD END 3/8"-24 RH MALE SHANK 4 5.39 21.56
2458K142 CARBON-FIBER RACE BALL JOINT ROD END 3/8"-24 LH MALE SHANK 2 5.39 10.78
2458K341 CARBON-FIBER RACE BALL JOINT ROD END 3/8"-24 RH FEMALE SHANK 2 5.39 10.78
8419K35 EASY-ADJUST THREADED CONNECTING ROD 4" OVERALL LENGTH, 3/8"-24 THREADED FEMALE ENDS 2 14.12 28.24
98017A199 18-8 STAINLESS STEEL AN 960 FLAT WASHER 3/8"L SZ,NO. C616L, .390"ID,.625"OD,.029"-.035"THK 1 4.25 4.25
97135A235 GRADE 8 HEX NYLON-INSERT LOCKNUT ZNC-YELLOW PLTD, 3/8"-24 SCREW SZ, 9/16"W, 29/64"H 1 3.40 3.40
91286A252 GRADE 8 COATED ALLOY STEEL HEX HEAD CAP SCREW 3/8"-24 THREAD, 2" LENGTH 1 10.17 10.17
Total89.18

Pegasus Racing Parts:

Part No. Part Qty Unit Cost Cost
3068-06 3/8 inch Rod End Retaining Washer 8 2.39 19.12
AN316-6-L AN316 Jam Nut, 3/8-24 Left Hand 2 0.69 1.38
AN316-6-R AN316 Jam Nut, 3/8-24 Right Hand 4 0.39 1.56
Total22.06

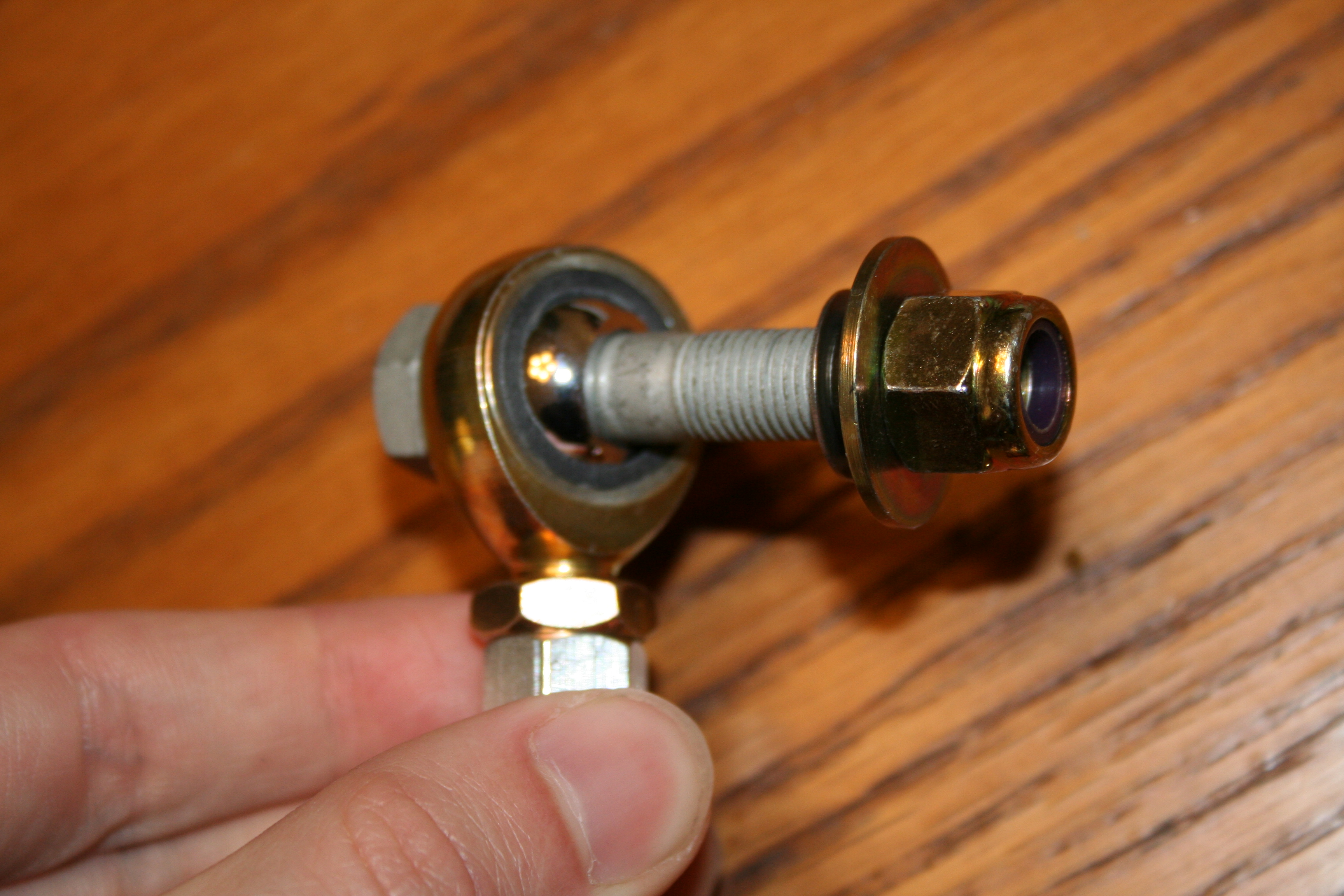

High resolution photos of assembled endlinks

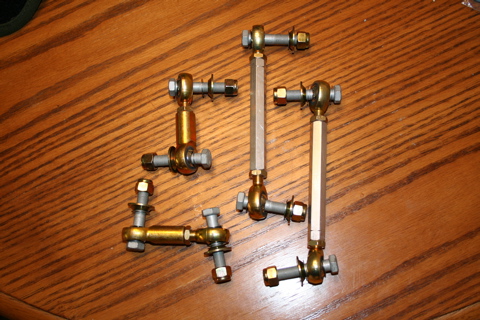

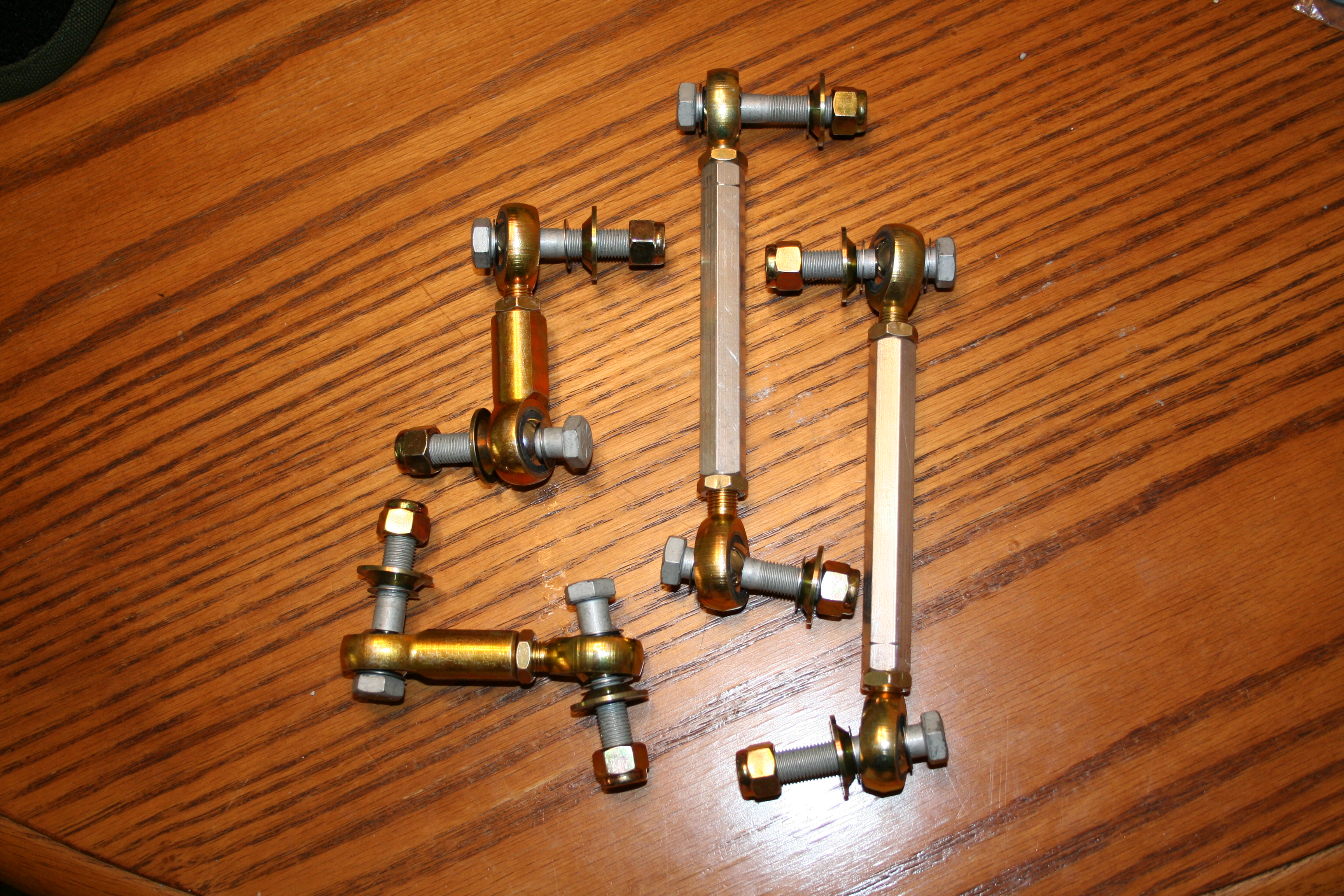

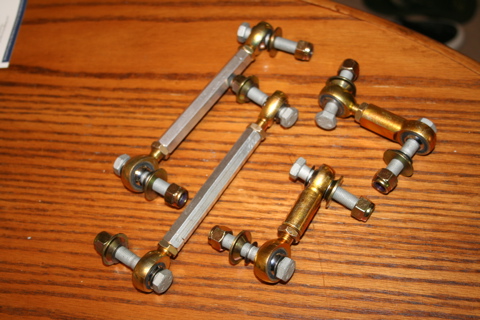

All four endlinks:

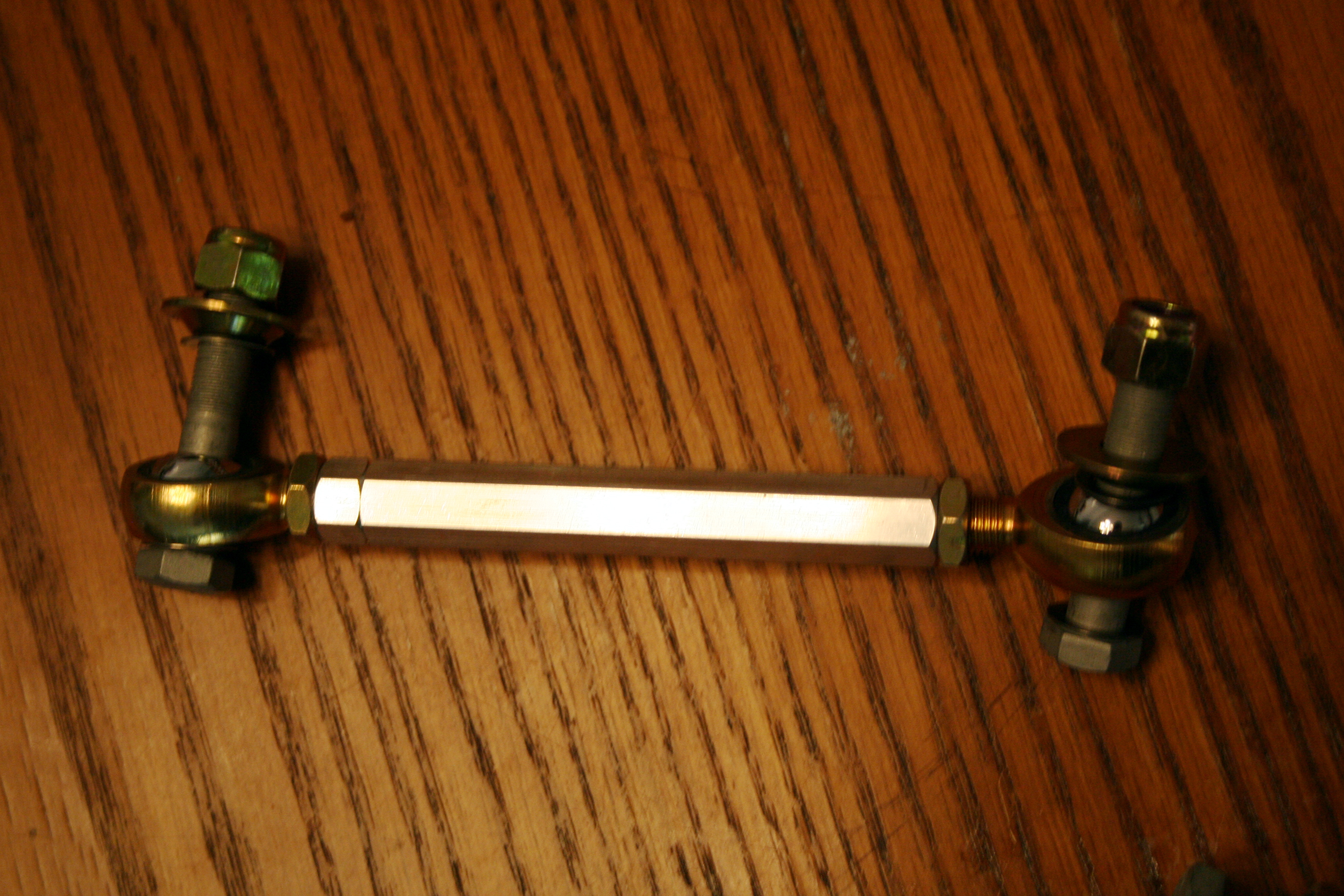

Rear endlinks:

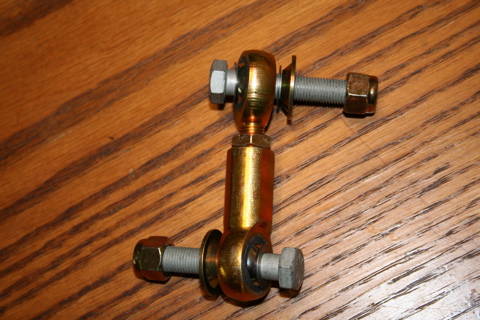

Front endlinks:

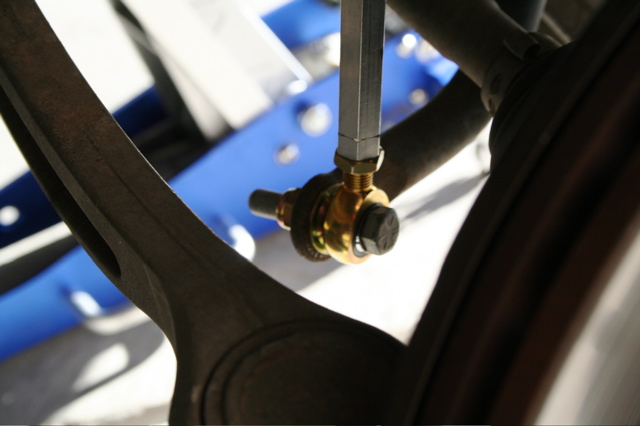

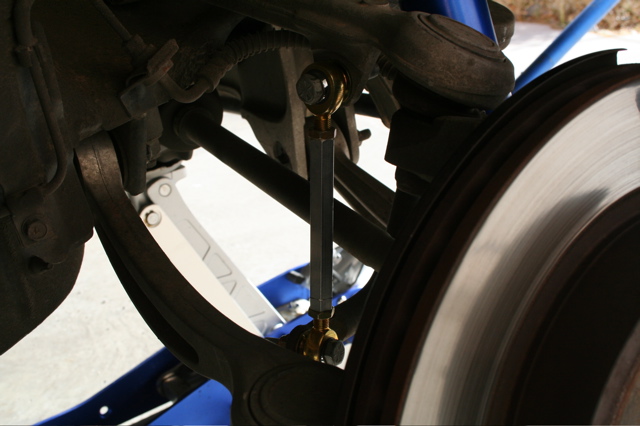

Photos of installed rear link
