Learning Objectives

• After the Floating point sessions students should be able to:
  • Describe how are fractional binary numbers interpreted.
  • Describe the IEEE floating point standard representation to approximate real numbers.
  • Perform conversions between IEEE fp and real numbers in decimal.
  • Define and perform the operations of rounding, addition, and multiplication of floating point.
  • Define how are floating point numbers represented in C.

Fractional Binary Numbers

Recall: Base Ten Decimal Notation

Visualized: Fractional Binary Numbers

$b = \sum_{k = -j}^{i} b_k * 2^k$

Fractional Binary Numbers

Practice: Fractional Binary Numbers

• 0.111₂ = ?₁₀
• 101.1₂ = ?₁₀
• 0.00110011₂ = ?₁₀

Practice: Fractional Binary Numbers

• $0.111_2 = \frac{7}{8}$
• 101.1₂ = ?₁₀
• 0.00110011₂ = ?₁₀

Practice: Fractional Binary Numbers

• $0.111_2 = \frac{7}{8}$
• $101.1_2 = 5\frac{1}{2}$
• 0.00110011₂ = ?₁₀

Practice: Fractional Binary Numbers

• $0.111_2 = \frac{7}{8}$
• $101.1_2 = 5\frac{1}{2}$
• $0.00110011_2 = \frac{51}{256}$

Addition

• Does addition still work?
• $0.111_2 (\frac{7}{8}_{10}) + 101.1_2 (5\frac{1}{2}_{10}) = ?_2 = ?_{10}$

Addition

• Does addition still work?
• $0.111_2 (\frac{7}{8}_{10}) + 101.1_2 (5\frac{1}{2}_{10}) = 110.011_2 = 6\frac{3}{8}_{10}$

Shifting

From Base 10 to Base 2

Demo: From Base 10 to Base 2

12.1₁₀ = ?₂

$12.1_{10} = 1100.0\overline{0011}_2$

Practice: From Base 10 to Base 2

123.4₁₀ = ?₂

Limitations: Representable Numbers

Insight: Scientific Notation

IEEE Floating Point

• IEEE Standard 754
  • Established in 1985 as uniform standard for floating point arithmetic
  • Before that, many idiosyncratic formats, each computer manufacturer had their own
  • Supported by all major CPUs
• Driven by numerical concerns
  • Nice standards for rounding, overflow, underflow
  • Hard to make fast in hardware
  • Numerical analysts predominated over hardware designers in defining the standard

Floating Point Representation

• High level interpretation: (−1)^s * M * 2^E
  • s: sign bit
  • exp: exponent which weights the value by a power of 2, encodes E which is written in bias notation
  • frac: fractional part between [1, 2), encodes M which stands for mantissa
• Remember that what is stored in exp and frac encodes E and M respectively

Aside: Mantissa

• An old mathematical term
• Is simply the decimal/fractional part of a number written in scientific notation
• For example:
  • 6230₁₀ = 6.23 * 10³
  • 6.23 is the mantissa

Floating Point Precision

• Single Precision: 32 bits

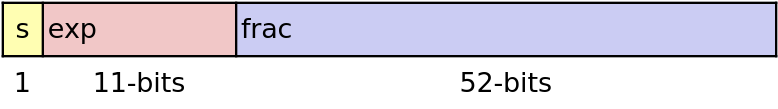

• Double Precision: 64 bits

Caveats

(−1)^s * M * 2^E

Aside: Bias Values

Aside: Bias Values

• For example a 4 bit biased binary number with K = 8:

Practice: Bias Notation

• Convert the following into 6 bit binary with K = 32
• 0₁₀ = ?₂
• 31₁₀ = ?₂
• −15₁₀ = ?₂

Practice: Bias Notation

• Convert the following into 6 bit binary with K = 32
• 0₁₀ = 100000₂
• 31₁₀ = ?₂
• −15₁₀ = ?₂

Practice: Bias Notation

• Convert the following into 6 bit binary with K = 32
• 0₁₀ = 100000₂
• 31₁₀ = 111111₂
• −15₁₀ = ?₂

Practice: Bias Notation

• Convert the following into 6 bit binary with K = 32
• 0₁₀ = 100000₂
• 31₁₀ = 111111₂
• −15₁₀ = 010001₂

Normalized Values

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• exp ≠ 000...0 and exp ≠ 111...1
• exp is interpreted as a biased value
  • E = exp − bias
  • bias = 2^k − 1 − 1, where k is the number of exponent bits
    • Single precision: 127 (exp: 1...254, E: −126...127)
    • Double precision: 1023 (exp: 1...2046, E: −1022...1023)
• M, mantissa, encoded with implied leading 1:
  • M = 1.x₁x₂x₃...x_j
  • x₁x₂x₃...x_j is what is stored in the mantissa
  • Minimum: 000...0, M = 1
  • Maximum: 111...1, M = 2 − ϵ

Example: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• Convert 13.0₁₀ into 32 bit floating point

• Unsigned binary: 1101₂

• Scientific notation: 1.101₂ * 2³

• Exponent:

  $$ \begin{aligned} E & {}= 3 \\ bias & {}= 127 (k = 8, 2^{k-1} = 128 - 1) \\ exp & {}= 130 (E + bias) = 10000010_2 \end{aligned} $$

Example: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• Convert 13.0₁₀ into 32 bit floating point

• Unsigned binary: 1101₂

• Scientific notation: 1.101₂ * 2³

• Mantissa:

  $$ \begin{aligned} M & {}= 1.101_2 \\ frac & {}= \phantom{0.}10100000000000000000000_2 \end{aligned} $$

Example: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• Convert 13.0₁₀ into 32 bit floating point

• Unsigned binary: 1101₂

• Scientific notation: 1.101₂ * 2³

• Exponent: 10000010₂

• Fraction: 10100000000000000000000₂

  sign	exp	frac
  0	10000010	10100000000000000000000

Example: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• Convert 15213.0₁₀ into 32 bit floating point

• Unsigned binary: 11101101101101₂

• Scientific notation: 1.1101101101101 * 2¹³

• Exponent:

  $$ \begin{aligned} E & {}= 13 \\ bias & {}= 127 (k = 8, 2^{k-1} = 128 - 1) \\ exp & {}= 140 (E + bias) = 10001100_2 \end{aligned} $$

Example: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• Convert 15213.0₁₀ into 32 bit floating point

• Unsigned binary: 11101101101101₂

• Scientific notation: 1.1101101101101 * 2¹³

• Mantissa:

  $$ \begin{aligned} M & {}= 1.1101101101101_2 \\ frac & {}= \phantom{0.}11011011011010000000000_2 \end{aligned} $$

Example: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• Convert 15213.0₁₀ into 32 bit floating point

• Unsigned binary: 11101101101101₂

• Scientific notation: 1.1101101101101 * 2¹³

• Exponent: 10001100₂

• Fraction: 11011011011010000000000₂

  sign	exp	frac
  0	10001100	11011011011010000000000

Practice: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• 12.0₁₀ = ?₂
• 100.0₁₀ = ?₂
• 01000010110010000000000000000000₂

Practice: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• 12.0₁₀ = ?₂
  • 01000001010000000000000000000000₂
• 100.0₁₀ = ?₂
• 01000010110010000000000000000000₂

Practice: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• 12.0₁₀ = ?₂
  • 01000001010000000000000000000000₂
• 100.0₁₀ = ?₂
  • 01000010110010000000000000000000₂
• 10111110111010000000000000000000₂ = ?₁₀

Practice: Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• 12.0₁₀ = ?₂
  • 01000001010000000000000000000000₂
• 100.0₁₀ = ?₂
  • 01000010110010000000000000000000₂
• 10111110111010000000000000000000₂ = ?₁₀
  • $-\frac{29}{64}_{10} = -0.453125_{10}$

Denormalized Values

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• When exp = 000...0
• E = 1 − bias instead of 0 − bias
• Mantissa encoded with leading 0 (instead of 1): M = 0.xxx...x₂
• Cases:
  • exp = 000...0 and frac = 000...0
    • Represents zero
    • +0 and -0 exist
  • exp = 000...0 and frac ≠ 000...0
    • Numbers closest to zero
    • Equidistant

Special Values

• When exp = 111...1
• Cases:
  • exp = 111...1 and frac = 000...0
    • ±∞
    • Operation that overflows
    • $\frac{1.0}{0.0} = \frac{-1.0}{-0.0} = +\infty$
    • $\frac{-1.0}{0.0} = \frac{1.0}{-0.0} = -\infty$
  • exp = 111...1 and frac ≠ 000...0
    • Not-a-Number (NaN)
    • Means no numeric value can be determined
    • $\sqrt{-1} = \infty - \infty = \infty * 0 = NaN$

Table: Floating Point Cases

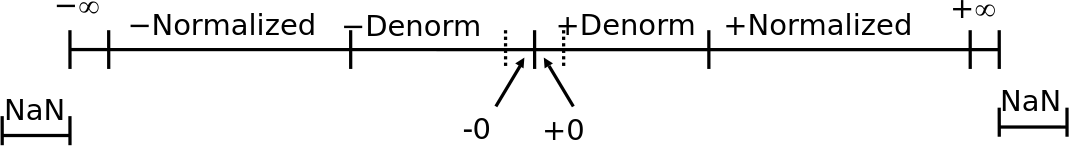

Visualize: Floating Point

Simplifying: Floating Point

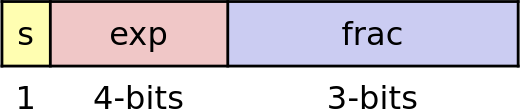

• 8-bit floating point representation
• Same general form as IEEE format just smaller

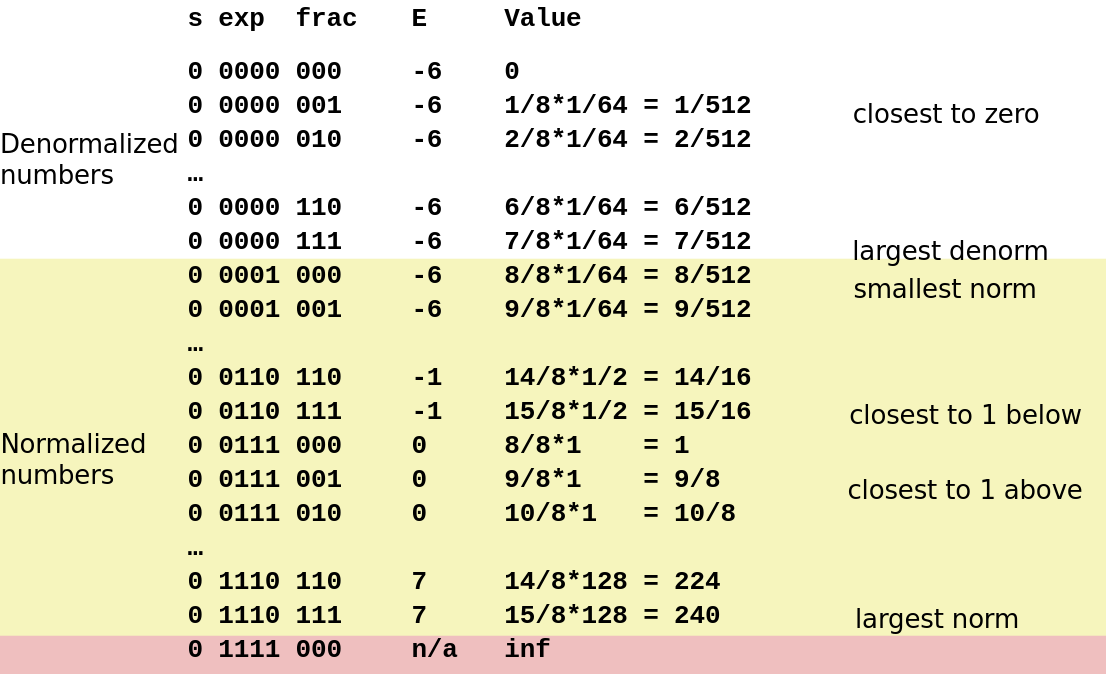

8-bit Floating Point Positive Range

Practice: 8-bit Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• What is the bias?

Practice: 8-bit Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• What is the bias? 2^4 − 1 − 1 = 7
• 2.5₁₀ = ?₂
• 01100011₂ = ?₁₀
• 10000111₂ = ?₁₀

Practice: 8-bit Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• What is the bias? 2^4 − 1 − 1 = 7
• 2.5₁₀ = ?₂
  • 01000010₂
• 01100011₂ = ?₁₀
• 10000111₂ = ?₁₀

Practice: 8-bit Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• What is the bias? 2^4 − 1 − 1 = 7
• 2.5₁₀ = ?₂
  • 01000010₂
• 01100011₂ = ?₁₀
  • 44₁₀
• 10000111₂ = ?₁₀

Practice: 8-bit Floating Point

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• What is the bias? 2^4 − 1 − 1 = 7
• 2.5₁₀ = ?₂
  • 01000010₂
• 01100011₂ = ?₁₀
  • 44₁₀
• 10000111₂ = ?₁₀
  • $-1 * \frac{7}{8} * \frac{1}{64} = -\frac{7}{512} = -0.013671875_{10}$

Dichotomy: 8-bit vs 32-bit

(−1)^s * M * 2^E where M = 1.xxx...x₂ and E = exp − bias

• Represent $\frac{1}{512}_{10}$ in 8-bit and 32-bit
• Normalized or denormalized?

Example: Denormalized Value 8-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$

• Unsigned binary: 0.000000001₂

• Scientific notation: 1.0 * 2⁻⁹

• Exponent:

  $$ \begin{aligned} E & {}= -9 \\ bias & {}= 7 (k = 4, 2^{k-1} = 8 - 1) \\ exp & {}= -2 (E + bias) = ?_2 \end{aligned} $$

Example: Denormalized Value 8-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$

• Exponent:

  $$ \begin{aligned} E & {}= -9 \\ bias & {}= 7 (k = 4, 2^{k-1} = 8 - 1) \\ exp & {}= -2 (E + bias) = ?_2 \end{aligned} $$

• exp cannot be negative! This means $\frac{1}{512}_{10}$ is denormalized

Example: Denormalized Value 8-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$

• Unsigned binary: 0.000000001₂

• Scientific notation: 1.0 * 2⁻⁹

• Exponent:

  $$ \begin{aligned} exp & {}= 0 (denorm) \\ bias & {}= 7 (k = 4, 2^{k-1} = 8 - 1) \\ E & {}= -6 {} = 1 - 7 (fixed \text{ } for \text{ } denorm) \end{aligned} $$

Example: Denormalized Value 8-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$
• Unsigned binary: 0.000000001₂
• Scientific notation: 1.0 * 2⁻⁹
• Mantissa: becomes more tricky now
  • Must write the number with a leading zero and E is fixed at −6
  $$ \begin{aligned} M * 2^{-6} & {}= 1.0 * 2^{-9} \\ M & {}= 2^{-3} {}= 0.001_2 {}= 0.125_{10} {}= \frac{1}{8} \\ frac & {}= 001 \end{aligned} $$

Example: Denormalized Value 8-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$

• Unsigned binary: 0.000000001₂

• Scientific notation: 1.0 * 2⁻⁹

• Exponent: 0000

• Fraction: 001

  sign	exp	frac
  0	0000	001

Example: Denormalized Value 32-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$

• Unsigned binary: 0.000000001₂

• Scientific notation: 1.0 * 2⁻⁹

• Exponent:

  $$ \begin{aligned} E & {}= -9 \\ bias & {}= 127 (k = 8, 2^{k-1} = 128 - 1) \\ exp & {}= 118 (E + bias) = 01110110_2 \end{aligned} $$

Example: Denormalized Value 32-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$

• Unsigned binary: 0.000000001₂

• Scientific notation: 1.0 * 2⁻⁹

• Mantissa:

  $$ \begin{aligned} M & {}= 1.0 \\ frac & {}= \phantom{1.}000...0 \end{aligned} $$

Example: Denormalized Value 32-bit

(−1)^s * M * 2^E where M = 0.xxx...x₂ and E = 1 − bias

• Convert $\frac{1}{512}_{10}$

• Unsigned binary: 0.000000001₂

• Scientific notation: 1.0 * 2⁻⁹

• Exponent: 01110110

• Fraction: 00000000000000000000000

  sign	exp	frac
  0	01110110	00000000000000000000000

Distribution of Values

• Notice that the distribution is denser towards zero, why is that?

Distribution of Values

Nice Properties of IEEE Floating Point

• Floating point 0 is equal to integer zero (all bits = 0)
• Comparisons can almost always be done using unsigned integers
  • Needs to consider the sign bit first
  • −0 = 0
  • NaN is problematic
    • Is greater than any other value
    • What should comparison yield?

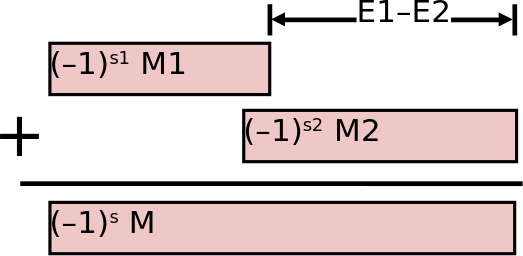

Floating Point Operations

• Only approximates real numbers (sec 2.4.4)
  • x+^fy = round(x + y)
  • x*^fy = round(x * y)
• Basic Idea:
  1. Compute exact result
  2. Make it fit into desired precision
  • Possibility of overflow if exponent is too large
  • Possibility of rounding to fit into fraction part

Rounding

Round-To-Even

• Default rounding mode
  • Hard to get anything else without using assembly directly
• Applying to other decimal places/bit positions
  • When exactly halfway between two possible vales:
    • Round so the least significant digit is even
  • For example rounding to the nearest hundredth:

  Value	Rounded Value	Note
  7.8949999	7.89	(Less than half way)
  7.8950001	7.90	(Greater than half way)
  7.8950000	7.90	(Half way—round up)
  7.8850000	7.88	(Half way—round down)

Rounding Binary Numbers

• Binary fractional numbers
  • “even” is when least significant bit i 0
  • “halfway” is when bits to the right of rounding position  = 100...₂
• For example rounding to the nearest quarter ($\frac{1}{4}$ 2 bits)

Practice: Round To Even

• Round to the $\frac{1}{2}$
• 10.010₂ = ?₂
• 10.011₂ = ?₂
• 10.110₂ = ?₂
• 11.001₂ = ?₂

Practice: Round To Even

• Round to the $\frac{1}{2}$
• 10.010₂ = 10.0₂
• 10.011₂ = ?₂
• 10.110₂ = ?₂
• 11.001₂ = ?₂

Practice: Round To Even

• Round to the $\frac{1}{2}$
• 10.010₂ = 10.0₂
• 10.011₂ = 10.1₂
• 10.110₂ = ?₂
• 11.001₂ = ?₂

Practice: Round To Even

• Round to the $\frac{1}{2}$
• 10.010₂ = 10.0₂
• 10.011₂ = 10.1₂
• 10.110₂ = 11.0₂
• 11.001₂ = ?₂

Practice: Round To Even

• Round to the $\frac{1}{2}$
• 10.010₂ = 10.0₂
• 10.011₂ = 10.1₂
• 10.110₂ = 11.0₂
• 11.001₂ = 11.0₂

Floating Point Multiplication (sec 2.4.5)

• (−1)^s1 M1 2^E1 * (−1)^s2 M2 2^E2

• Exact Result: (−1)^s M 2^E

  Part	Result
  Sign s	s1 ^ s2
  Mantissa M	M1 * M2
  Exponent E	E1 + E2

• If M ≥ 2, shift M right, increment E

• If E is out of range, overflow and round M to fit frac precision

• Helpful Site

Floating Point Addition

Mathematical Properties of Floating Point: Add

• x+^fy = round(x + y)
• Closed under addition? Yes
  • Could still generate infinity of NaN though
• Commutative? Yes
• Associative? No!
  • Due to overflow and inexactness of rounding
  • (3.14 + 1e10) − 1e10 = 0, 3.14 + (1e10 − 1e10) = 3.14
• 0 is additive identity? Yes
• Every element has additive inverse? Almost!
  • Everything except infinities and NaNs
• Monotonicity (a ≥ b ⟹ a+^fc ≥ b+^fc)? Almost!
  • Everything except infinities and NaNs

Mathematical Properties of Floating Point: Mul

• Closed under multiplication? Yes
  • Could still generate infinity or NaN though
• Commutative? Yes
• Associative? No!
  • Due to overflow and inexactness of rounding
  • (1e20 * 1e20) * 1e − 20 = inf, 1e20 * (1e20 * 1e − 20) = 1e20
• 1 is multiplicative identity? Yes
• Multiplication distributes over addition? No!
  • Due to overflow and inexactness of rounding
  • 1e20 * (1e20 − 1e20) = 0.0, 1e20 * 1e20 − 1e20 * 1e20 = NaN
• Monotonicity (a ≥ b & c ≥ 0 ⟹ a * c ≥ b * c)? Almost!
  • Everything except infinities and NaNs

Why You Need To Know

• Rounding and overflows are a fact of life and need to be mitigated
• Addition and multiplication are not associative or distributive!
• Some things aren’t exact such as 0.1:

for (double i = 0.0; i < 1.0; i += 0.1)
  printf(“%.19f “, i);

0.0000000000000000000  0.1000000000000000056  0.2000000000000000111
0.3000000000000000444  0.4000000000000000222  0.5000000000000000000
0.5999999999999999778  0.6999999999999999556  0.7999999999999999334
0.8999999999999999112  0.9999999999999998890

• Every number has an additive and multiplicative inverse
• Sometimes you need to be very careful about the order things are done

Floating Point in C (sec 2.4.6)

• C guarantees two levels
  • float (single precision)
  • double (double precision)
• Conversions/Casting
  • Casting between int, float, and double changes bit pattern
  • double/float → int
    • Truncates fractional part
    • Behaves like rounding toward zero
    • Not defined when out of range or NaN, but generally sets to TMin
  • int → double
    • Exact conversion
  • int → float
    • Will round according to rounding mode

Summary

• IEEE Floating Point has clear mathematical properties
• Represents numbers of form Mx2^E
• One can reason about operations independent of implementation
  • As if computed with perfect precision and then rounded
• Not the same as real arithmetic
  • Violates associativity/distributivity
  • Makes life difficult for compilers & serious numerical applications programmers
