Learning Objectives

• After this module students should be able to:
• Describe the basic hardware model
• Describe data representation in this HW model
• Describe in general, the conversions between C, machine code, and assembly code
• Describe the assembly basics: registers, operands, and move instructions

Understanding How Software is Mapped to Hardware

• Things every good programmer needs:
  • A basic model of the underlying hardware system
  • The steps through which software programs are mapped to this hardware system
  • What a program looks like at each step and a basic understanding of how each mapping happens

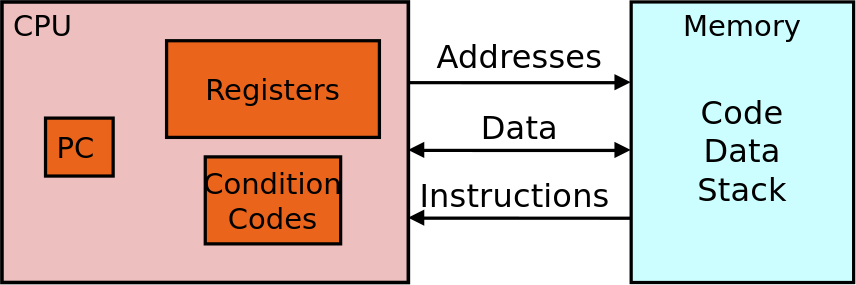

Basic Hardware Model

• Stored program on byte-addressable memory:
  • Single memory that stores both program and data
  • Each numbered successive memory location stores a single byte (8-bit) of data
  • Memory contents are untyped
  • Sequence of bytes can be interpreted as characters, unsigned, integers, floats, strings, pointers, etc.
  • Program code is just another way to interpret the bytes

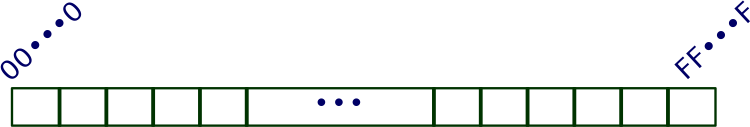

Byte-Addressable Memory Organization

• Programs refer to data by address
  • Conceptually, envision it as a very large array of bytes (virtual memory)
    • In reality, it’s not, but you can think of it that way (as do machine-level programs)
  • An address is like an index into that array
    • A pointer variable stores the (virtual) address of the 1st byte of some storage block

Byte-Addressable Memory Organization

• Note: system provides private address spaces to each “process”
  • Think of a process as a program being executed (more on this concept later)
  • So, a program can hammer on its own data, but not that of others

Machine Words (sec 2.1.2)

• Every computer has a word size
• Nominal size of integer value data (including addresses)
• Modern computers are mostly 64 bit
• Virtual address space = set of all possible addresses
• Machines still support multiple data formats (char, short, long, etc.)
• Fixed-size words can have complicated implications!

Example: Data Representations (extension of fig 2.3)

Standard ISO C99

• Introduced a “class of data types where the data sizes are fixed regardless of compiler and machine settings.”
  • E.g. int32_t (4 bytes), int64_t (8 bytes)
• With fixed-size integer types, programmers have more control over data representations
• char is unsigned by default
• Advice: programs should be portable across machines and compilers
  • Try to make programs insensitive to the exact sizes of different data types

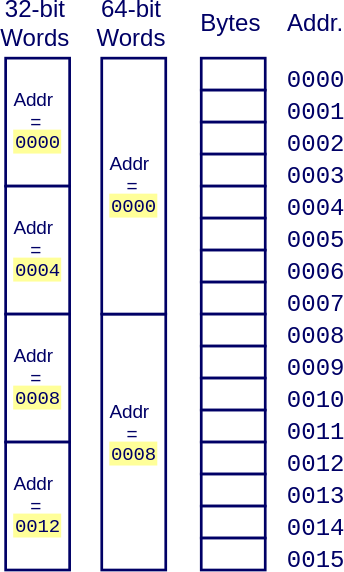

Word-Oriented Memory Organization (sec 2.1.3)

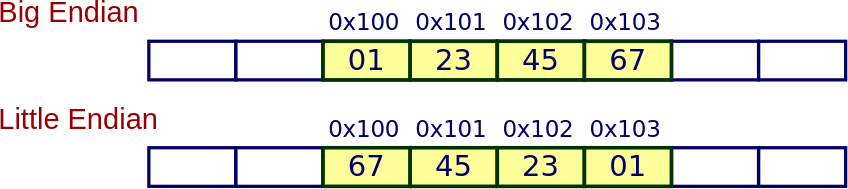

Byte Ordering

• How are the bytes within a multi-byte word ordered in memory?
• Conventions:
  • Big Endian: Sun, PPC Mac, Internet
    • Least significant byte has highest address (0x103 in our e.g.)
  • Little Endian: x86, ARM microprocessors running Android, iOS, and Windows
    • Least significant byte has lowest address (0x100 in our e.g.)
• When pulled into the processor for math, everything still happens the same!

Byte Ordering Example

• Variable x has 4-byte value of 0x01234567
• Address given by &x (address of x) is 0x100

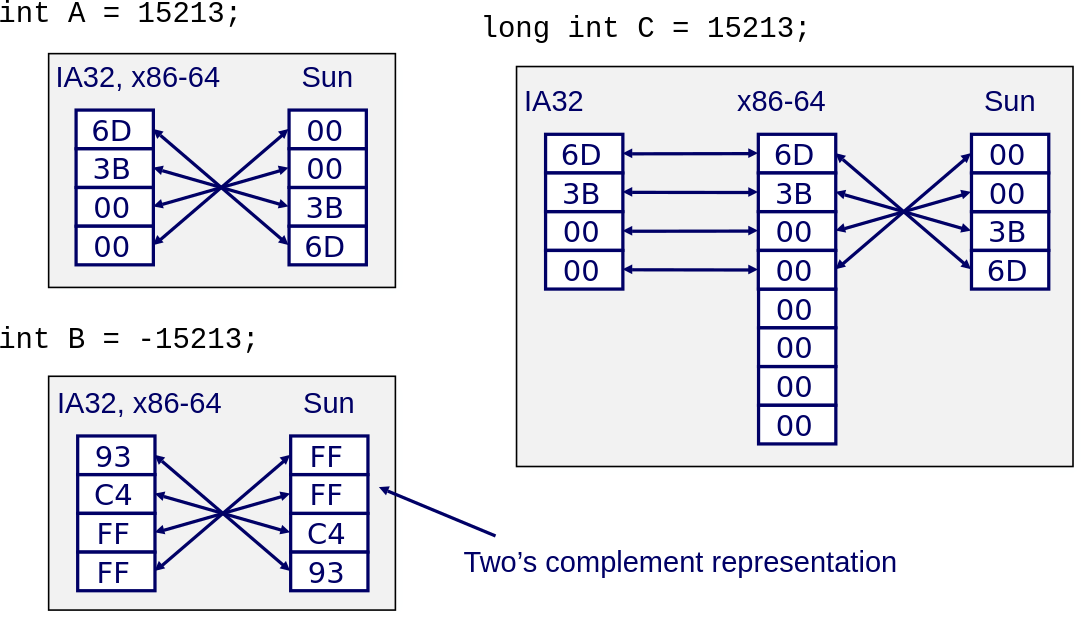

Representing Integers

Decimal: 15213
Binary:  0011 1011 0110 1101
Hex:      3    B    6    D

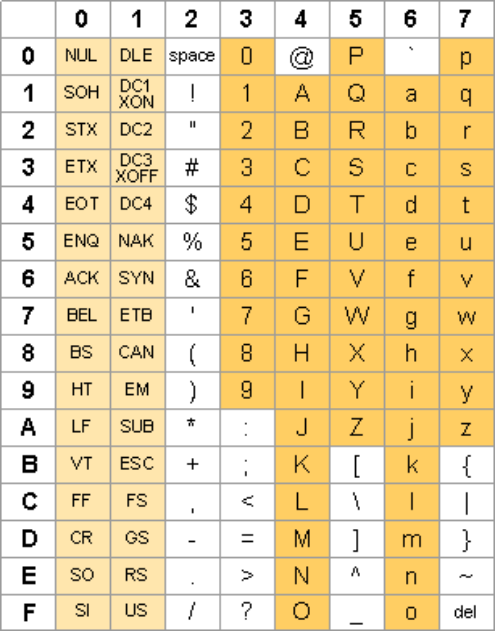

Representing Characters

Representing Strings (sec 2.1.4)

• Strings in C:
  • Represented by array of characters
  • Each character encoded in ASCII format
  • String should be null-terminated
    • Final character = 0 (not ‘0’, but the null character)
• Lots of C string errors
  • Not allocating enough space for the string
  • Forgetting to copy or set the null character
  • Forgetting to allocate space for the null

Representing Strings (sec 2.1.4)

• Byte ordering not an issue for strings!
  • Array entries always stored in increasing order (of addresses)
  • So one byte characters are in increasing order (of addresses)
• Using ASCII for encoding makes them independent of byte ordering and word size conventions. Therefore, text data are more platform independent than binary data.

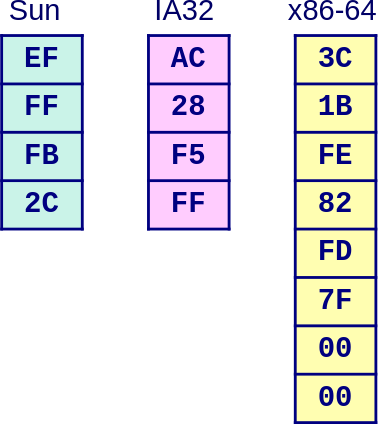

Representing Pointers

int b  = -15213;
int *p = &b;

Examining Data Representations

• Code to Print Byte Representation of Data
  • Casting pointer to unsigned char * allows treatment as a byte array

  typedef unsigned char *pointer;

  void show_bytes(pointer start, size_t len) {
    size_t i;
    for (i = 0; i < len; i++)
      printf("%p\t0x%.2x\n", start+i, start[i]);
    printf("\n");
  }

Using show_bytes

int a = 15213;
printf("int a = 15213;\n");
show_bytes((pointer) &a, sizeof(int));

• Results on Linux x86-64:

int a = 15213;
0x7ffee15d7e8c  0x6d
0x7ffee15d7e8d  0x3b
0x7ffee15d7e8e  0x00
0x7ffee15d7e8f  0x00

Moving Onto Chapter 3: Machine-Level Representations of Programs

Running Programs is just a Processor Interpreting Memory

• Processor has a relatively simple model
  1. Read some bytes from a location in memory (the address in the program counter)
  2. Interpret the data in that location as a machine instruction
  3. Do what that instruction says, modifying processor and memory state appropriately
  4. Goto 1
• The whole system software stack (OS, compilers, linkers, etc) relies on conventions about laying out programs in memory

Assembly/Machine Code View

C vs Machine Code vs Assembly

int fib(int n)
{

    int r = 1;

    for (; n > 0; n--) {

        r = r * n;

      /* Loop decr.    */
      /* Loop end chk. */

    }
    return r;
}

Disassembly of section .text:
Address  Insn Bytes  Assembly Code
40057d:  55          push %rbp
40057e:  48 89 e5    mov %rsp,%rbp
400581:  89 7d ec    mov %edi,-0x14(%rbp)
400584:  c7 45 fc 01 00 00 00  movl   $0x1,-0x4(%rbp)
40058b:  eb 0e       jmp 40059b <fib+0x1e>
40058d:  8b 45 fc    mov -0x4(%rbp),%eax
400590:  0f af 45 ec imul -0x14(%rbp),%eax
400594:  89 45 fc    mov %eax,-0x4(%rbp)
400597:  83 6d ec 01 subl   $0x1,-0x14(%rbp)
40059b:  83 7d ec 00 cmpl   $0x0,-0x14(%rbp)
40059f:  7f ec       jg     40058d <fib+0x10>
4005a1:  8b 45 fc    mov    -0x4(%rbp),%eax
4005a4:  5d          pop    %rbp
4005a5:  c3          retq

Toolchain for Compiled Programs

Why Learn Assembly?

• Understand optimization capabilities of the compiler and analyze inefficiencies of the code
• Maximize performance of critical sections of the code
• Many programs are attacked through weaknesses that are visible at the machine-level representation of the programs
• In the earlier days we needed to learn assembly to write the programs directly in that language
• Today we need to be able to read and understand the code generated by compilers

Critical Piece of Advice

• The textbook provides many examples and exercises that illustrate different aspects of assembly language and compilers.
• From the authors of the textbook:
• “This is a subject where mastering the details is a prerequisite to understanding the deeper and more fundamental concepts.”
• “Those who say”I understand the general principles, I don’t want to bother learning the details” are deluding themselves.”
• “It is critical that you spend time studying the examples, working through exercises, and checking your solutions with those provided.”

History of Intel Processors

• Read on your own: sec 3.1

Our Coverage

• This class focuses on x86-64
• Relevant textbook errata: here

Learning Objectives

• Describe how to disassemble a program in C
• List and describe all the x86-64 registers
• List and describe the operand specifiers
• Describe the 9 addressing modes and practice address calculations in an instruction

Machine Programming I: Basics

• C, assembly, machine code
• Assembly Basics: Registers, operands, move
• Arithmetic & logical operations

Definitions

• Architecture: (also ISA: instruction set architecture) The parts of a processor design that one needs to be able to write and understand assembly/machine code
  • Examples: instruction set specification, registers (processor state)
• Microarchitecture: Implementation of the architecture
  • Examples: cache sizes and core frequency
• Code Forms:
  • Machine Code: The byte-level programs that a processor executes
  • Assembly Code: A text representation of machine code
• Example ISAs:
  • Intel: x86, IA32, Itanium, x86-64
  • ARM: Used in almost all mobile phones and increasingly in other places

Assembly/Machine Code View Revisited

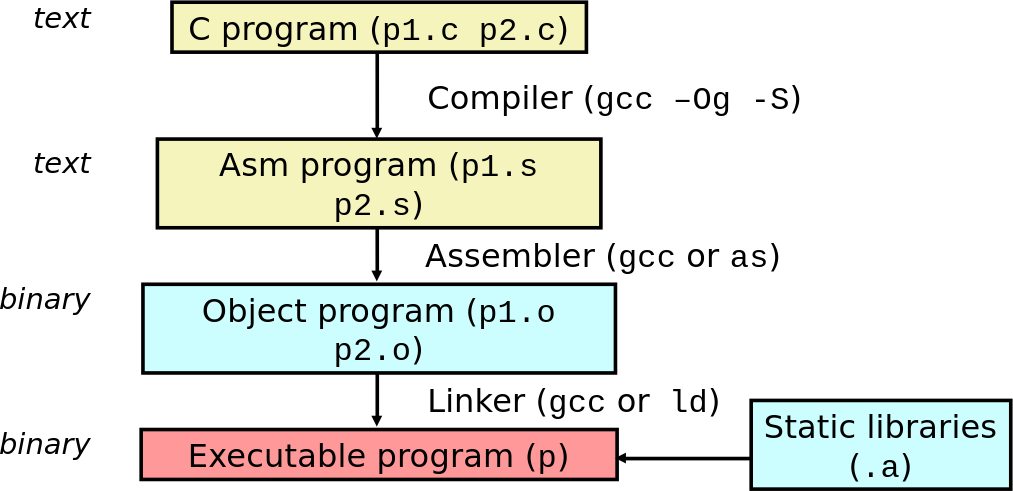

Turning C into Object Code

• Code in files: p1.c p2.c
• Compile with command: gcc -Og p1.c p2.c -o p

Compiling into Assembly

long plus(long x, long y);

void sumstore(long x, long y,
              long *dest)
{
    long t = plus(x, y);
    *dest = t;
}

sumstore:
    pushq   %rbx
    movq    %rdx, %rbx
    call    plus
    movq    %rax, (%rbx)
    popq    %rbx
    ret

• To obtain yourself:
  • gcc -Og -S sum.c (S means only preprocess and compile)
  • Produces file sum.s
• Potential for different results on different machines!

Assembly Characteristics: Data Types

• “Integer” data of 1, 2, 4, or 8 bytes
  • Data values
  • Addresses (untyped pointers)
• Floating point data of 4, 8, or 10 bytes
• Code: Byte sequences encoding series of instructions
• No aggregate types such as arrays or structures
  • Just contiguously allocated bytes in memory

Assembly Characteristics: Operations

• Perform arithmetic function on register or memory data
• Transfer data between memory and register
  • Load data from memory into register
  • Store register data into memory
• Transfer control
  • Unconditional jumps to/from procedures
  • Conditional branches

Object Code

0x0400595:
    0x53
    0x48
    0x89
    0xd3
    0xe8
    0xf2
    0xff
    0xff
    0xff
    0x48
    0x89
    0x03
    0x5b
    0xc3

From C to Machine Code

*dest = t;

movq %rax, (%rbx)

0x40059e:  48 89 03

Disassembling Object Code

0000000000400595 <sumstore>:
  400595:  53               push   %rbx
  400596:  48 89 d3         mov    %rdx,%rbx
  400599:  e8 f2 ff ff ff   callq  400590 <plus>
  40059e:  48 89 03         mov    %rax,(%rbx)
  4005a1:  5b               pop    %rbx
  4005a2:  c3               retq

• Disassembler (inspects contents of machine-code files)
  • objdump –d sum
  • Useful tool for examining object code
  • Analyzes bit pattern of series of instructions
  • Produces approximate rendition of assembly code
  • Can be run on either a.out (complete executable) or .o file

GDB Disassembly

0x0400595:
    0x53
    0x48
    0x89
    0xd3
    0xe8
    0xf2
    0xff
    0xff
    0xff
    0x48
    0x89
    0x03
    0x5b
    0xc3

Dump of assembler code for function sumstore:
  0x0000000000400595 <+0>: push   %rbx
  0x0000000000400596 <+1>: mov    %rdx,%rbx
  0x0000000000400599 <+4>: callq  0x400590 <plus>
  0x000000000040059e <+9>: mov    %rax,(%rbx)
  0x00000000004005a1 <+12>:pop    %rbx
  0x00000000004005a2 <+13>:retq

What Can Be Disassembled?

% objdump -d WINWORD.EXE

WINWORD.EXE:   file format pei-i386

No symbols in "WINWORD.EXE".
Disassembly of section .text:

30001000 <.text>:
30001000: FORBIDDEN!
30001001: FORBIDDEN!
30001003: FORBIDDEN!
30001005: FORBIDDEN!
3000100a: FORBIDDEN!

• Anything that can be interpreted as executable code
• Disassembler examines bytes and reconstructs assembly source

Machine Programming I: Basics

• C, assembly, machine code
• Assembly Basics: Registers, operands, move
• Arithmetic & logical operations

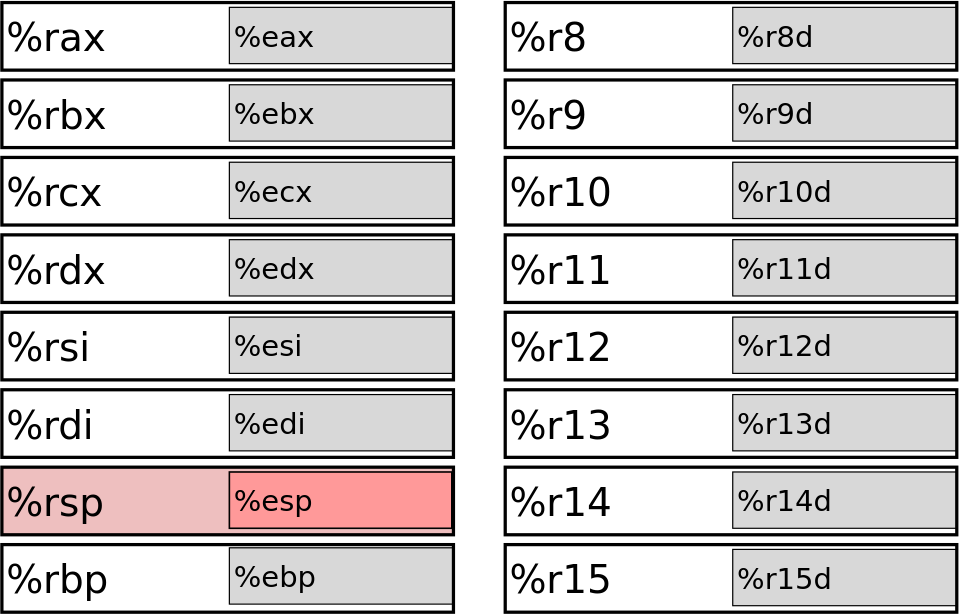

x86-64 Integer Registers (figure 3.2)

x86-64 Integer Registers

• 16 registers in total
• Used to store integer data and pointers
• Study figure 3.2 and learn the names of the registers
• Multiple naming conventions have accumulated during HW evolution
• Instructions can operate on data of different sizes

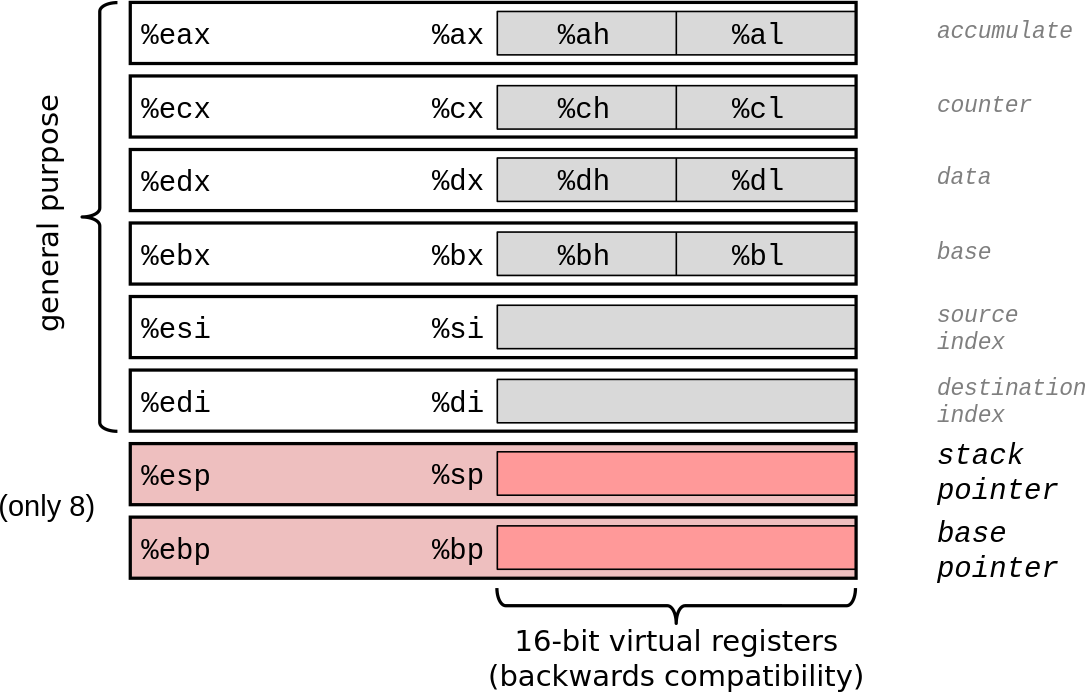

History: IA32 Registers

Using Registers

• Unique register: %rsp indicates end position in the run-time stack
• Some instructions specifically read and write this register
• Other 15 registers are used more flexibly
• Some instructions use specific registers
• Standard programming conventions set the use of the registers to manage the stack (covered in Section 3.7 with the procedures)
• Have fig. 3.2 handy (for the rest of the semester, may bring to tests)

x86-64 Size Terminology (fig. 3.1)

• Letters used as suffix in operations
• E.g. data movement instruction variants given size:
  • movb (move byte)
  • movw (move word)
  • movl (move double word)
  • movq (move quad word)

Floating Point Sizes (fig. 3.1)

• No ambiguity or problems since the set of instructions and registers for floating point are separate and different from the other instructions

Operand Specifiers (fig. 3.3)

• Instructions have 0, 1, or more operands
  • operands are used to specify:
    • source values: constants, value in register, or value in memory
    • destination location for result values: registers or memory
• Operand types (ATT format):
  • immediate: constants have '$' prefix
  • register: array R indexed by register id, R[r_a]
  • memory reference: access memory location using effective address.
    • array M of bytes, M[Addr], starting at address addr

Modes For Memory References (fig. 3.3)

• There are nine (9) forms of memory references
• These modes are used to specify the index to M
• Most general mode is Imm(r_b, r_i, s) which gives an effective address (index to M) computed as:
  • Imm + R[r_b] + R[r_i] * s
    • b for base and i for index, $ indicates immediate
    • s (scaling factor) can only be: 1, 2, 4, or 8
    • some components might be missing which gives diff. modes
• More complex modes used for arrays and structure elements

Example: Operand Specification

• Note: all of these are used to compute a memory address which the contents of is then fetched

Practice: Problem 3.1

Practice: Problem 3.1 Solution

Data Movement Instructions (fig. 3.4)

• MOV S,D (from source (S) to destination (D))

• General rule: size of operand determines portion of the register to be updated. Exception: movl, also sets the high-order 4 bytes of the register to 0.
• movq when given an immediate value, treats it as 32 bit two’s complement value which it sign extends to 64 bit
• movabsq when given an immediate value, treats it as 64 bit

Moving Data With movq

• movq Source, Dest
• Operand Types
  • Immediate: Constant integer data
    • Example: $0x400, $-533
    • Like C constant, but prefixed with '$'
    • Encoded with 1, 2, or 4 bytes
  • Register: One of 16 integer registers
    • Example: %rax, %r13
    • But %rsp reserved for special use
    • Others have special uses for particular instructions
  • Memory: 8 consecutive bytes of memory at address given by register
    • Simplest example: (%rax)
    • Various other “address modes”

movq Operand Combinations
